Field Notes

The Field Notes tool provides a streamlined way to relay information between the field and the office. Field users on the eSUB Fusion mobile app can easily upload and tag job site images to document progress, issues, delays, safety protocols, material shipments, and anything else your business needs. Office users can quickly review and respond to Field Notes in order to keep operations running smoothly.

Log Features

Search, Sort, and Filter the Log

• Use the Search bar at the top of the page to enter your search criteria

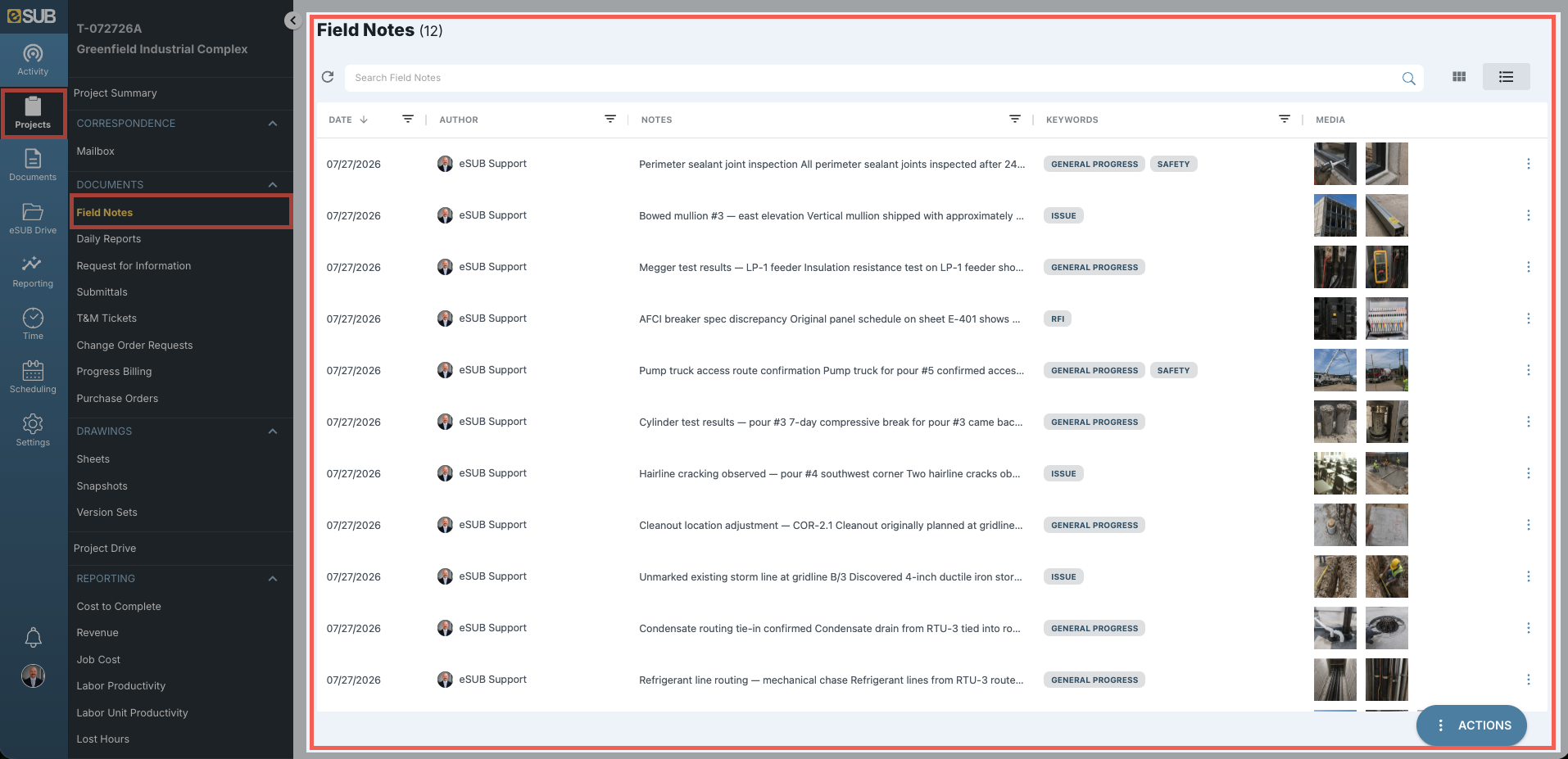

• For pages that appear as tables, use the filter buttons on the header to make your desired sorting/filtering selections

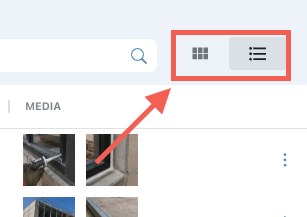

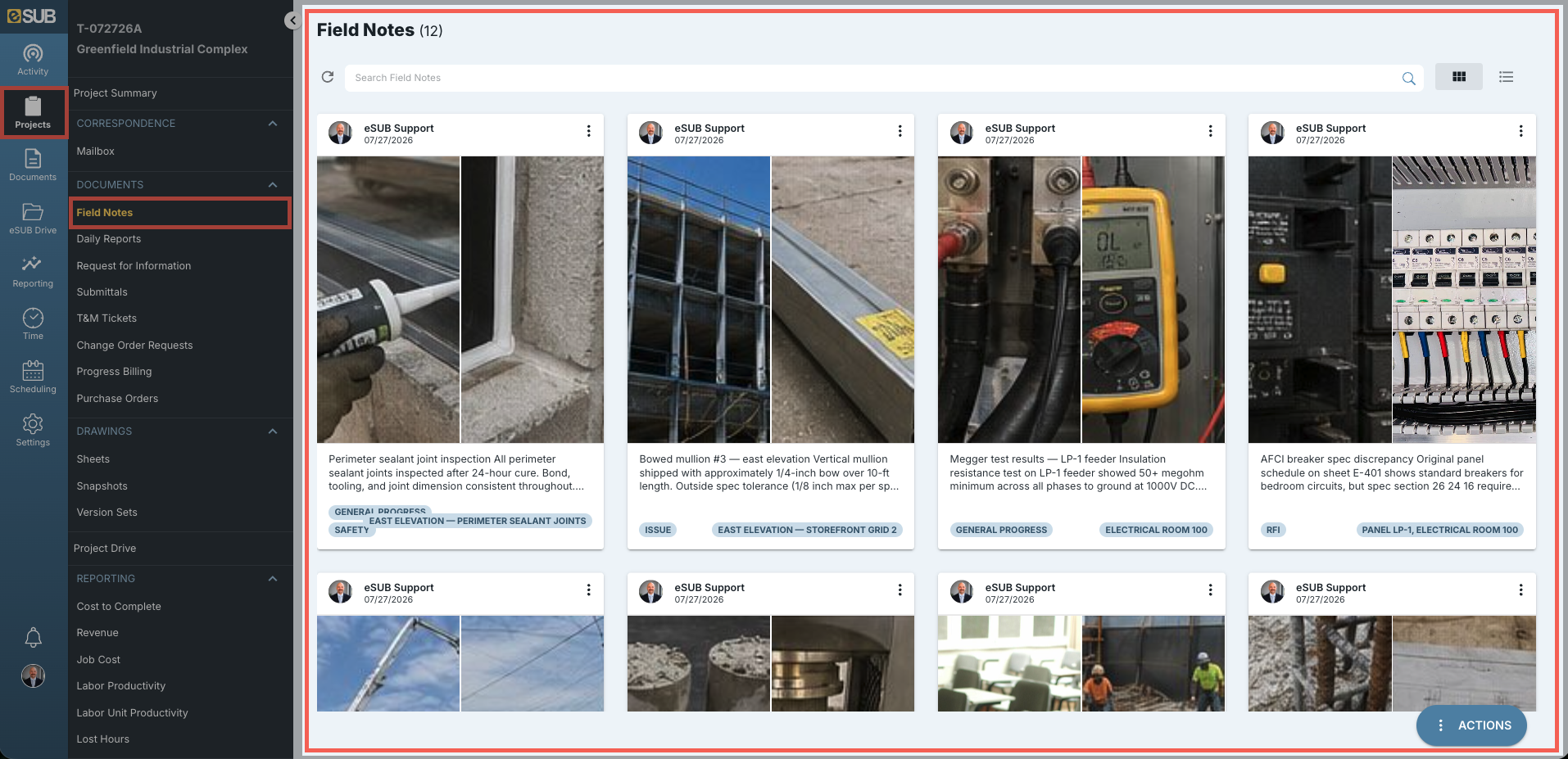

• For pages that appear as card lists, use the filter button that appears above the card list (next to the Search bar) to make your desired sorting/filtering selections

See the Navigating through the eSUB Fusion Interface article for more guidance.

Download Documents

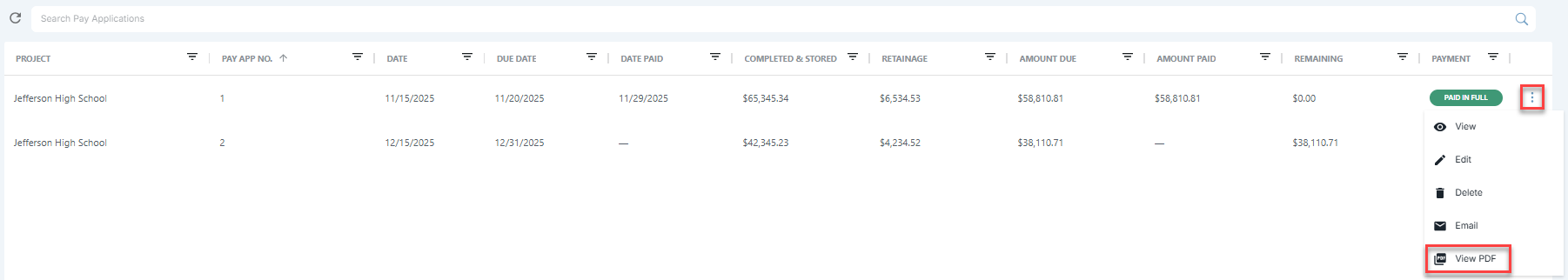

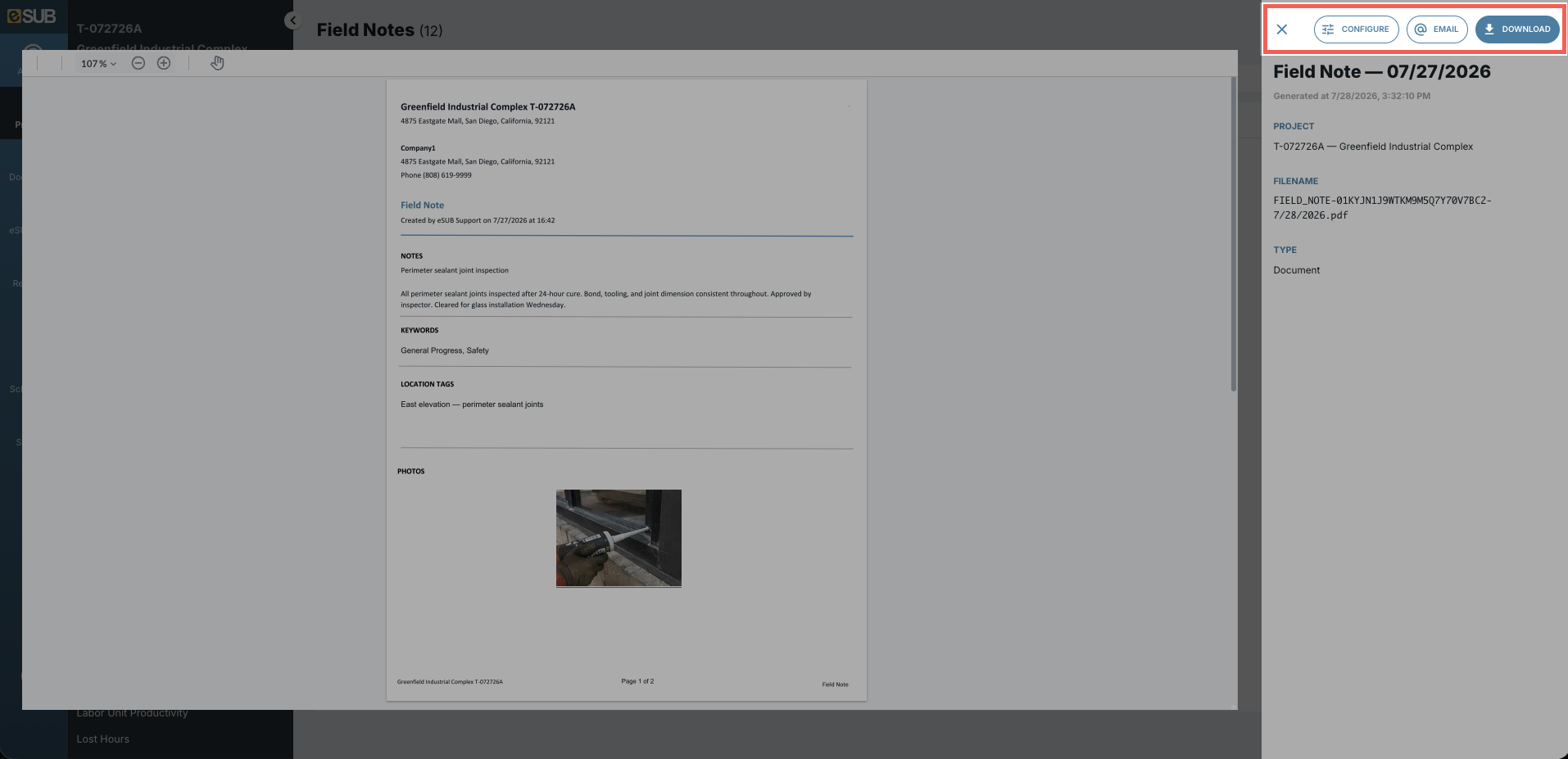

1. Select the 3-dot menu in line with the applicable document from the log page, then select View PDF

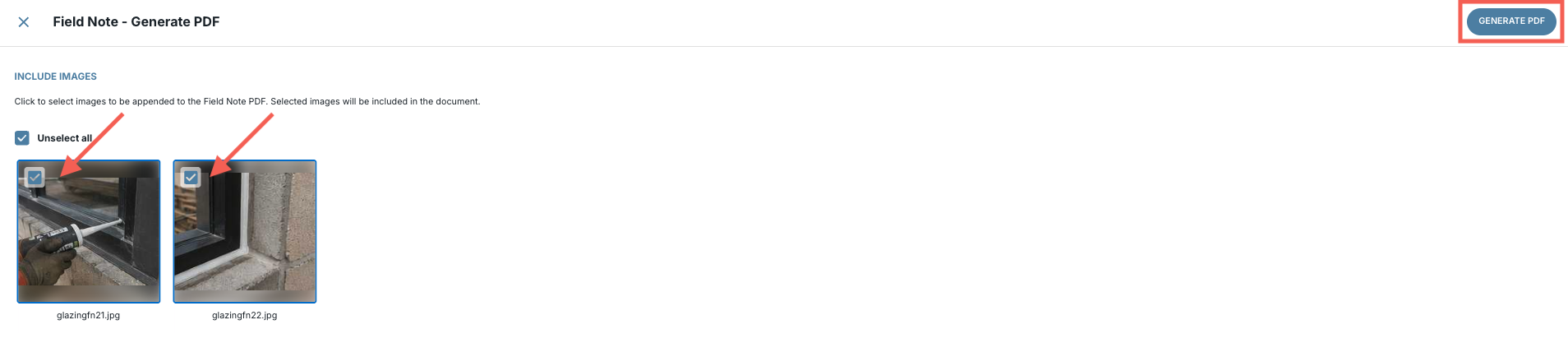

2. Select the desired sections and/or attachments to include in the PDF (if applicable) then select Done
3. If the preview is acceptable, select Download, or select Configure and repeat step 2

See the Document Downloads and Exports article for more guidance.

Export Document Logs

To be able to save your records or for analysis, you can export document logs into CSV.

Filtering first will save time and make your export cleaner.

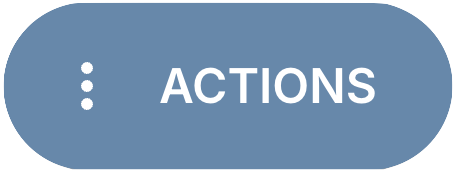

Select the Action button and select Export Log. The log file will download into CSV format.

See the Document Downloads and Exports article for more guidance.

Email Documents

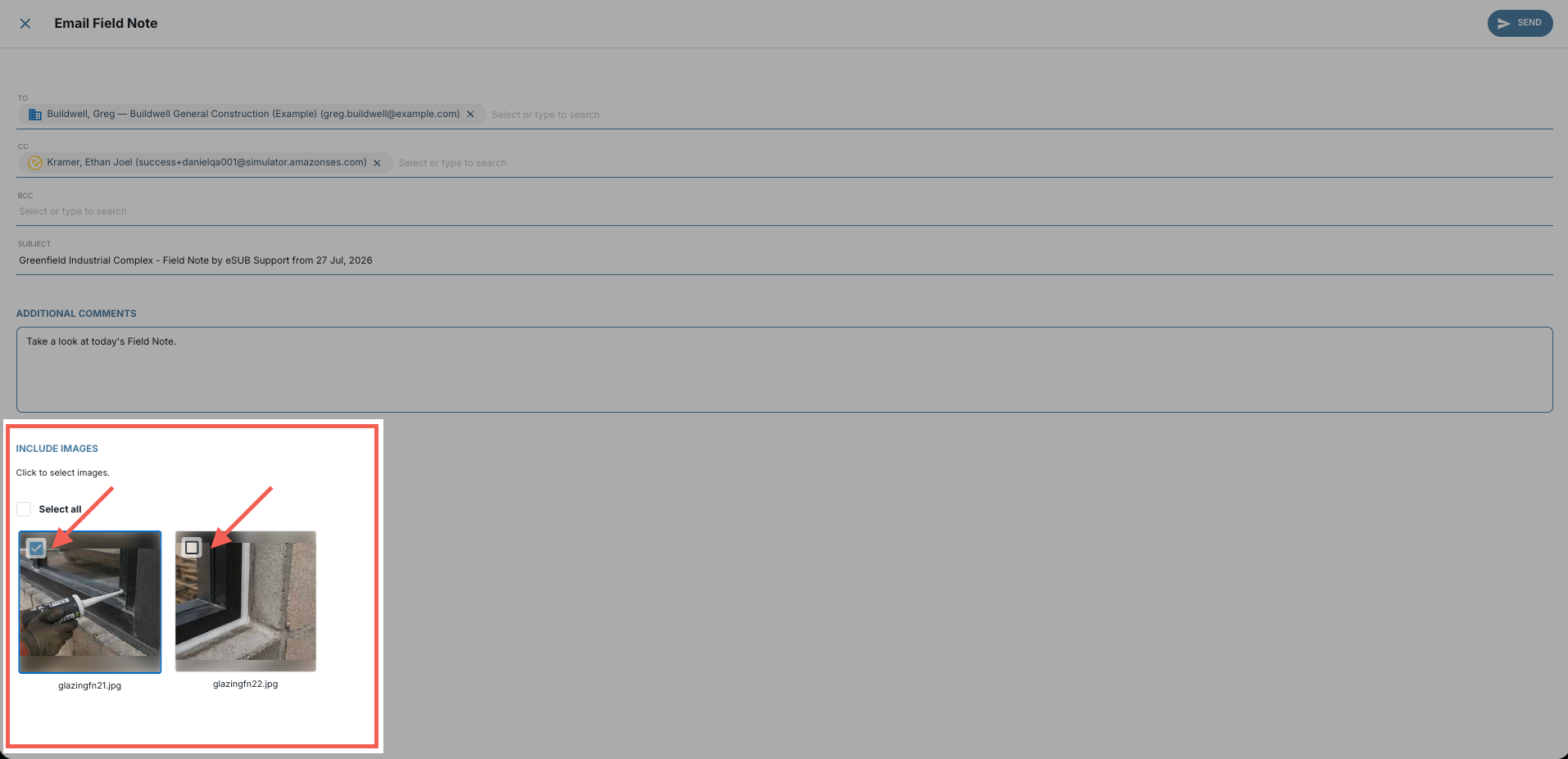

1. Select the 3-dot menu from the log page, then select Email
2. Compose the email, then select Send

See the Emailing Documents article for more guidance.

Use the three-dot menu on a document from the log page to quickly access actions for the document, such as Edit, Delete, Email or View PDF.



Create Field Note

Field Notes can be created on either the mobile app or the web. See the Field Notes on Mobile article for more guidance on creating Field Notes via the mobile app.

1. Select Projects on the global navigation menu, then select the desired project from the list
2. Select Field Notes from the slide out menu
3. Select Add Field Note on the action button
4. Enter a description in the Notes field
5. Add attachments, Keywords, and Location Tags (See below)
6. Select Save when finished



Field Note Features

See the sections below for additional information on the various features of the Field Notes tool.

Media & Attachments

Use the Notes field to lend more context to the Field Note.

Keywords are tags that can be added to the document for categorization purposes or to bring attention to issues or setbacks on the job site.

Location Tags are a feature of Field Notes that lets the creator tag a specific area within the job site. Location Tags can be entered on the fly while creating a Field Note so that the Location Tags list for a project grows dynamically as more Field Notes are created on the project. A Location Tag can be reused on the project once it has been created and applied.

Examples of Location Tags might include: 6th Floor, Room 121, Rooftop, Basement, etc.

The Activity Log tab displays a timeline of activity related to the document such as the email activity.

To see the Activity Log tab, a user must have the Mailbox - General Permissions permission.

From the document log page:

1. Select the document to view it then select the Activity Log tab
2. Select a link under Email Activity to view the associated message
