Drawings in eSUB Fusion gives your team an easy and streamlined workflow for uploading, annotating, sharing, and creating related documentation for your project drawings from virtually anywhere, on any device.
To perform the actions described in this article, a user must have the User Admin - Full User Management and Drawings - General Permissions permissions and must have an active Drawings subscription.
Use the links below to quickly jump to a topic:
- Set Up Drawings Users
- Accessing the Drawings Tool
- Uploading Drawings to a Project
- Accessing Most Recent Sheet Versions
- Compare Sheets
- Add Markups to Sheets
- Create a Snapshot from a Sheet and Link It to an RFI
Set Up Drawings Users
Once the Drawings tool has been added to your company's eSUB Fusion subscription, your Drawings users can be set up by taking the following steps:
- Assign a Drawings license to the user
- Grant Drawings permissions to the user
- Ask the user to log out and back in for the changes to take effect
See the sections below for step-by-step guidance.
Assign a Drawings License to a User
Access the User List by going to User Admin > Users. From the User list, you can either add a new user or edit an existing user, and assign them one of your company’s available Drawings licenses.
For complete steps and guidance on user management, see the Create and Manage Users and Crew Members article.
While creating or editing a user:

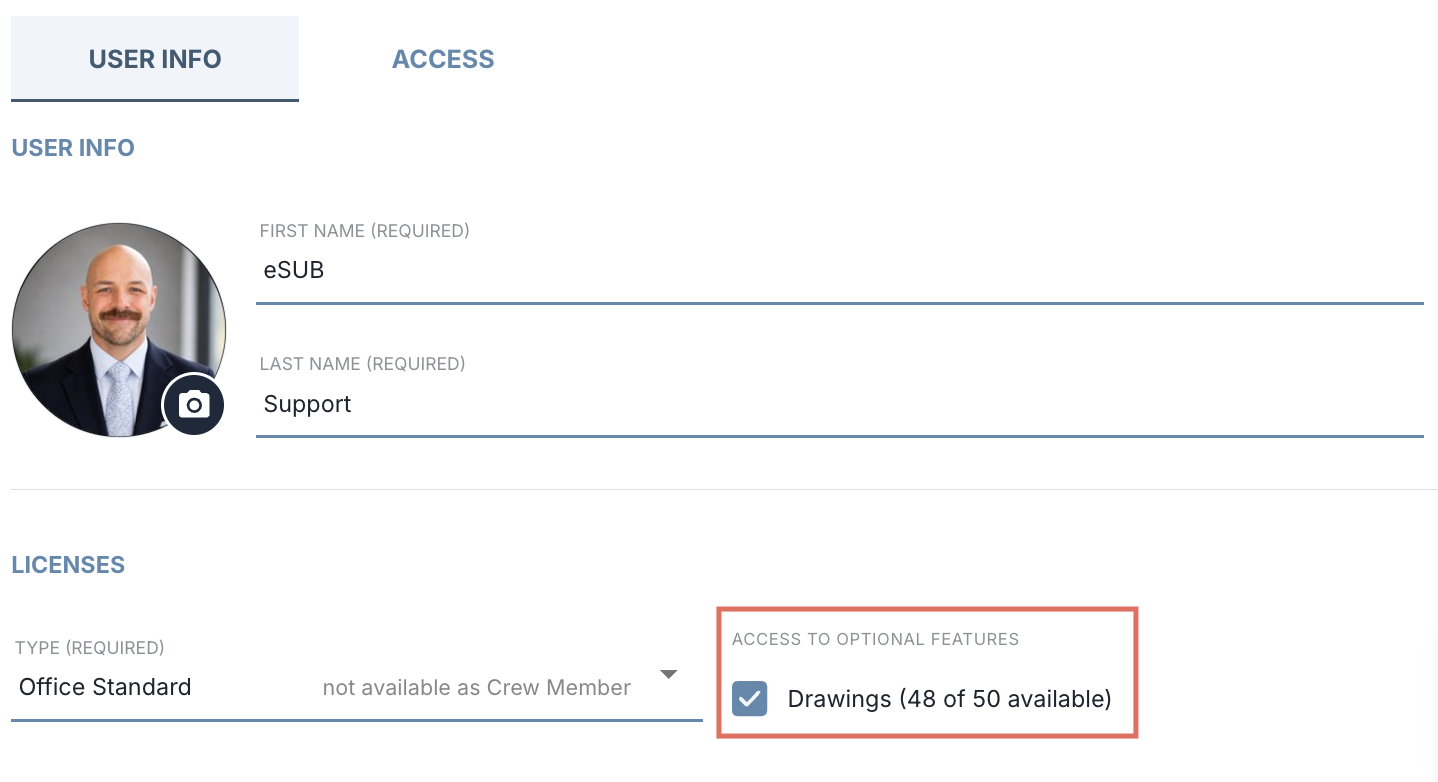

- Select the Drawings checkbox under Licenses
- Make any other changes as desired then select Save when finished

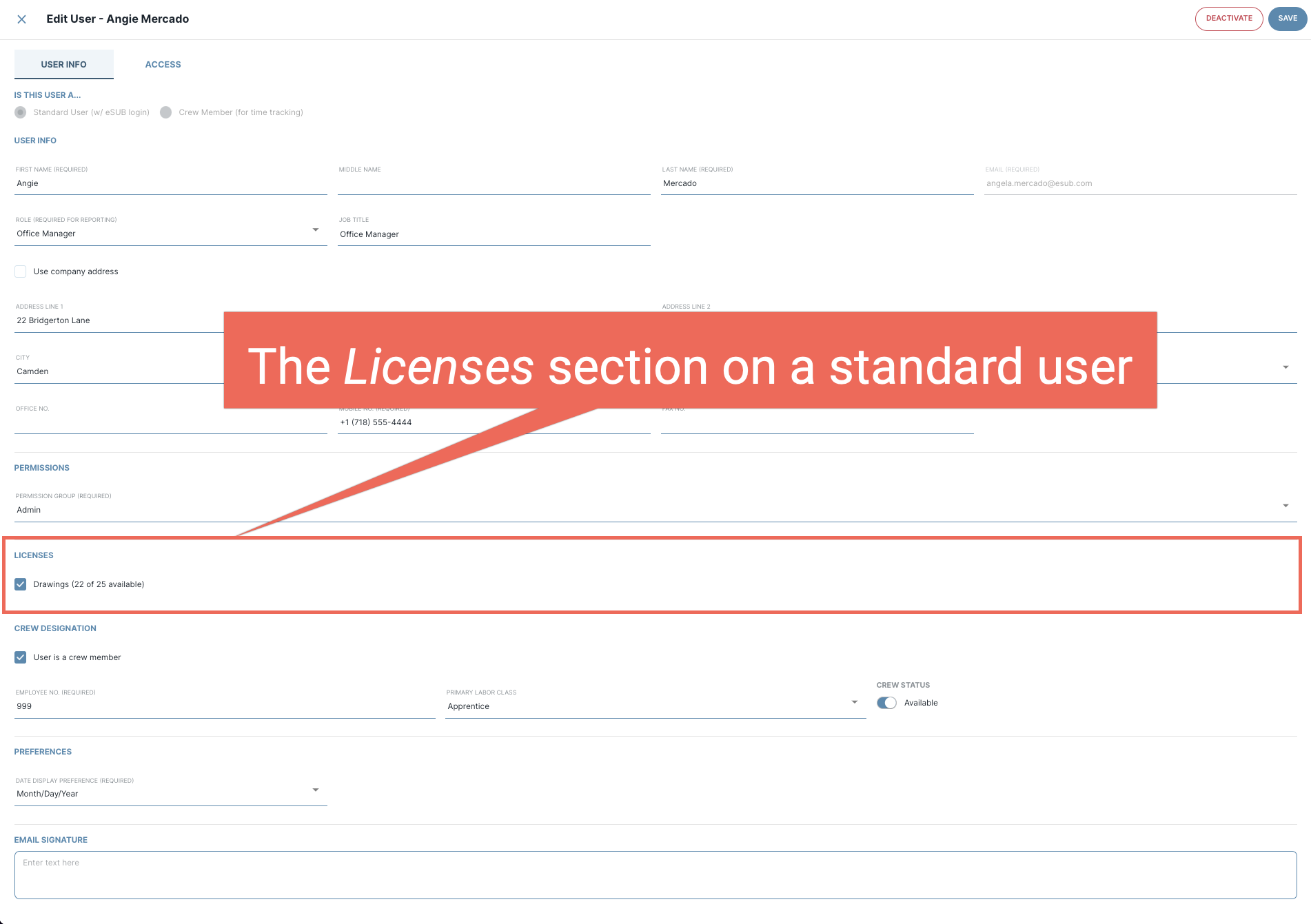

| The Licenses section on a standard user |
Grant Drawings Permissions to a User
Access the Permission Groups page by going to User Admin > Permission Groups. From this page, you can grant the specific drawings permissions that the team member needs to their assigned permission group. Note that even if a user has permission to access the Drawings tool via their permission group, they still need to be assigned a license in order for the Drawings tool to appear in their project menu.
For complete steps and guidance on permission group management, see the Set Up User Permissions article.
While creating or editing a permission group:
- Select the desired permissions under the Drawings - General Permissions section
- Select the checkmark when finished
Log Out and Back In
Changes to an organization's configuration (such as enabling the Drawings tool) require users to log out and then back in for the changes to take effect.
- Select the user icon from the global navigation menu, then select Logout
- Go to the login page at esubcloud.com/login, enter your eSUB Fusion credentials, and select Sign In
Accessing the Drawings Tool
- Select Projects on the global navigation menu, then select the desired project from the list
- Make a navigation selection under Drawings in the slide out menu:
- Sheets
- Snapshots
- Version Sets

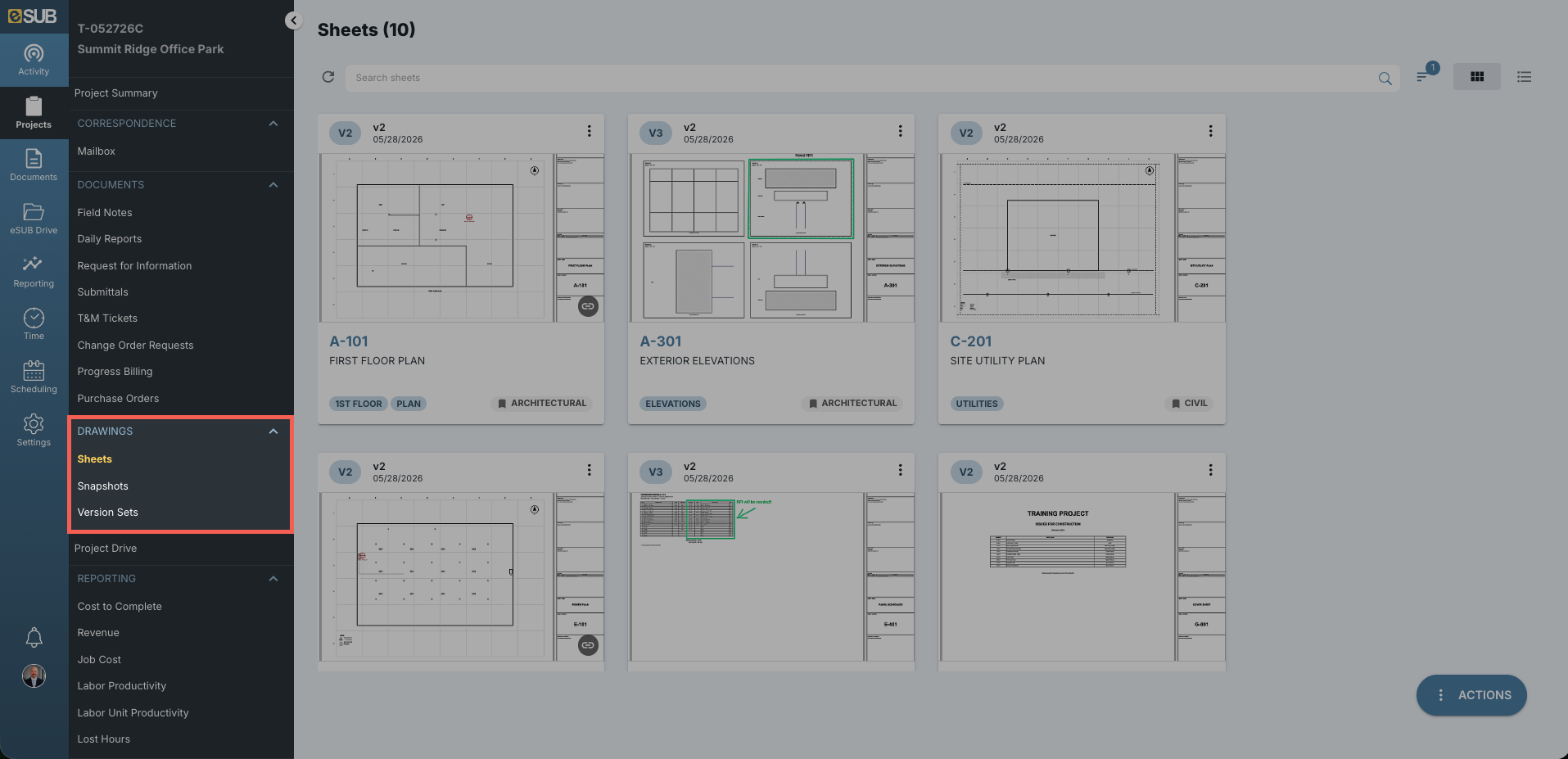

| Example of the Drawings section in the project slide out menu |
Uploading Drawings to a Project
Your multi-page and single-page drawing PDFs can be uploaded into each project from the Sheets log.
- From the global navigation menu, select Projects, then choose your desired project.
- In the slide-out menu, open Sheets under Drawings, and select ➕ Upload Sheets from the Actions
button.
- Complete the required fields and select the PDF files to upload (single-sheet or multi-sheet files are supported). Select Next to continue
- Select Create New Set to create a new set to add a new set or revision of drawings
- To add sheets to an existing set (e.g. additional sheets, revisions, etc.) select Choose Existing Set
- Review your sheets and make any necessary updates:
- Sheets are temporarily assigned placeholder Sheet Numbers (for example pg_1, pg_2, etc.) to preserve the original order from your file.
- Newly uploaded sheets or sheets added to the set are indicated by the
icon in the Sheet No. field.

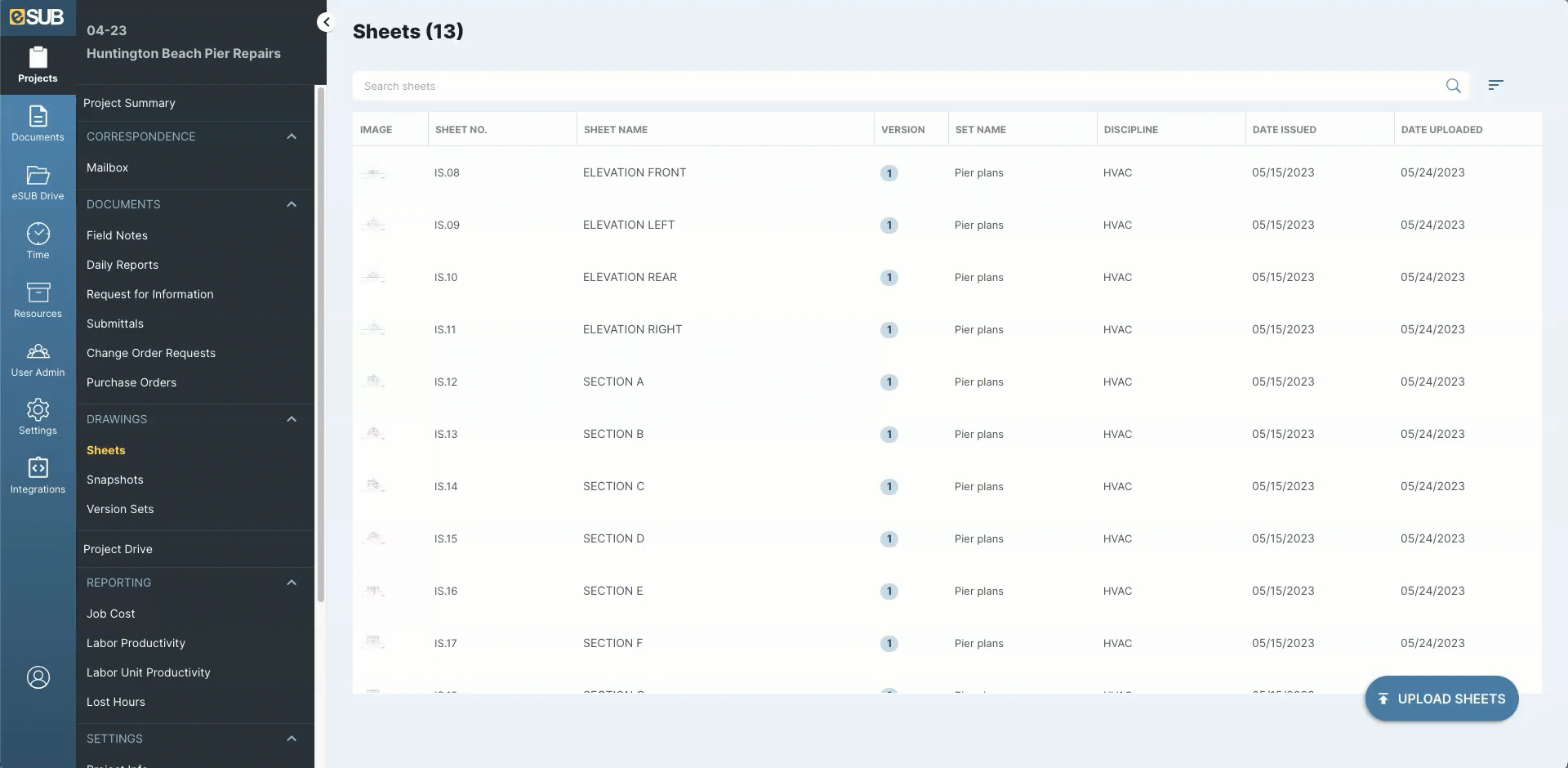

| How to upload drawings |
| Click Here for complete step-by-step guidance on the topic. |
Change a Set Name or Issue Date
The Version Sets page allows users to view and manage drawing set information, including set names and issue dates, ensuring clear tracking of drawing releases throughout the project lifecycle.
Select any of the inline fields on the Version Sets page and make edits to the fields as desired. Changes to the fields are auto-saved.
- Select Projects on the global navigation menu
- Choose the desired project from the list

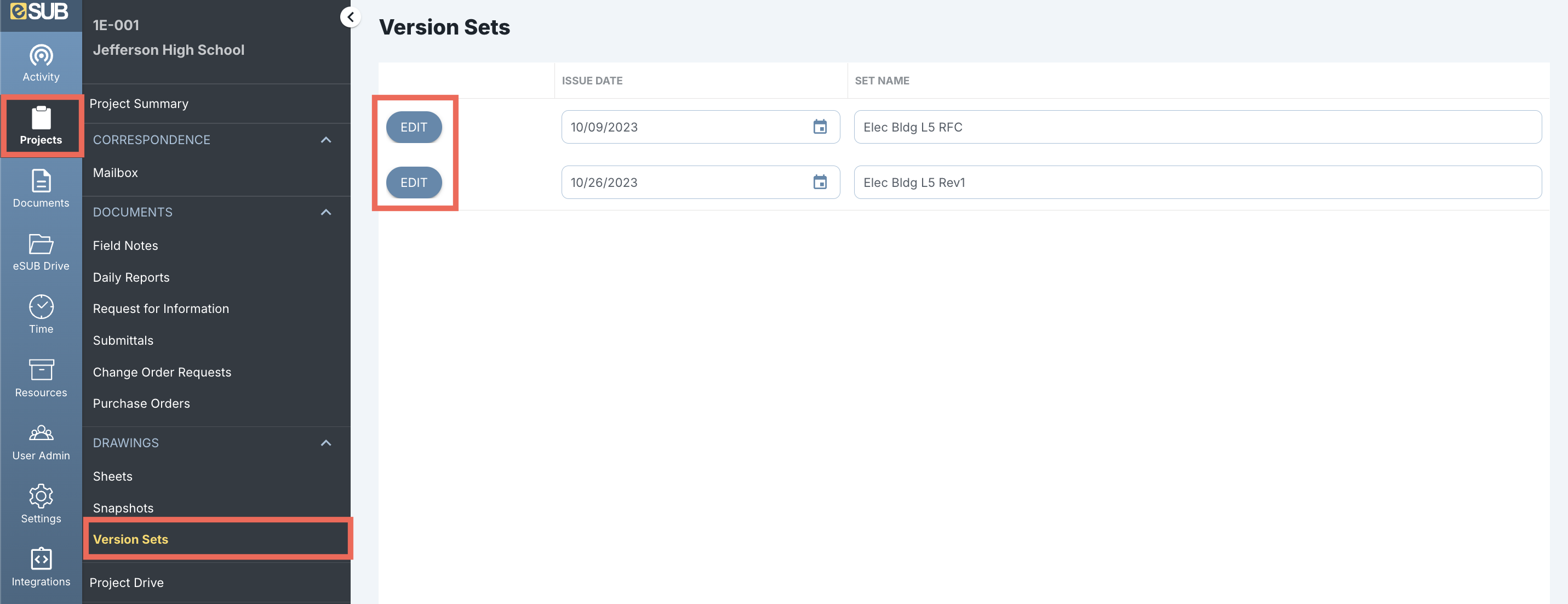

- Select Version Sets under Drawings from the slide out menu
| Click Here for complete step-by-step guidance on the topic. |
Bulk-Edit Drawing Sets
Once uploaded, your drawing sets can be easily edited to add tags, assign disciplines, and capture sheet details—automatically naming and numbering each sheet for streamlined organization. The edit view mirrors that of the initial upload process.
To Bulk-Edit your Drawing Sets:
-
From the global navigation menu, select Projects, then choose your desired project from the list.
-
In the slide-out menu, go to Drawings and select Version Sets.
-
Review the available drawing sets and click Edit next to the one you want to update.
More information can be found in this article under Upload Drawings to a Project.
Accessing Most Recent Sheet Versions
The Version column and badge , identifies and displays the most recent version of each sheet within the set.
Older versions of a sheet can be viewed by selecting the View Sheet hyperlink under the Versions section while viewing a sheet.
From the Sheets log:
- Select a sheet to view it, then select the desired version under Versions
| Click Here for complete step-by-step guidance on the topic. |
Compare Sheets
The Compare tool overlays two sheets so you can quickly identify changes between versions. The active sheet appears in blue, the comparison sheet appears in red, and any overlapping identical content displays in black.

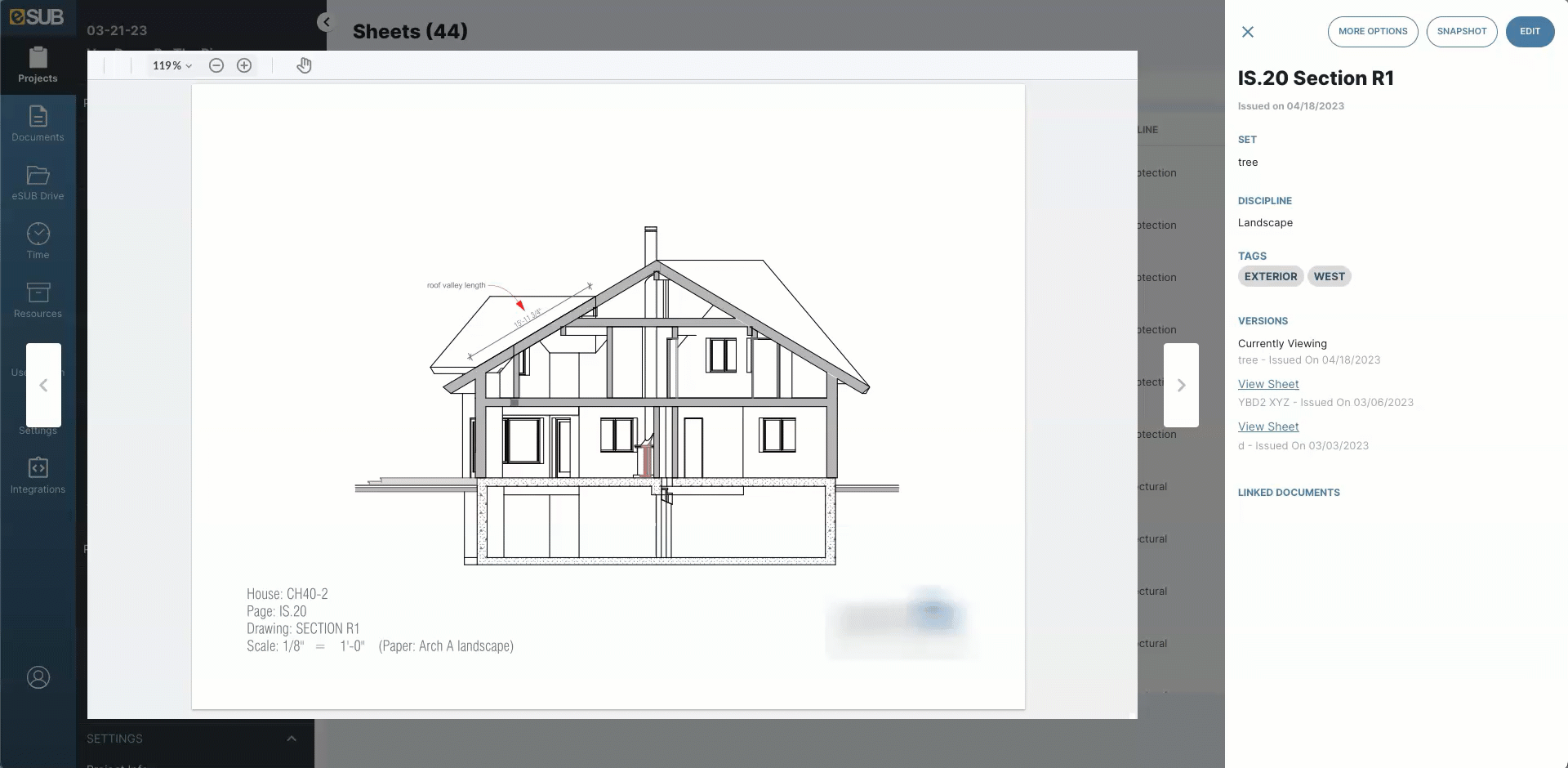

| How to view other versions of a sheet and compare sheets |
| Click Here for complete step-by-step guidance on the topic. |
Add Markups to Sheets
Team members can use a range of simple markup tools to add annotations that draw attention to specific areas of a drawing. The markup toolbar includes clouds, shapes, arrows, lines, text, and other tools to support clear communication.
Each of the markup options is different, but the general method for most markups is to first select the markup option on the toolbar, then hold and drag your cursor along the image to apply the markup to the desired area on the sheet.
From Sheets:
- Select a sheet to view it, then select Edit
- Select one of the markup options on the toolbar to reveal the markup tools
- Select from annotations, shapes, and measurements
- Apply markups as desired then select Save

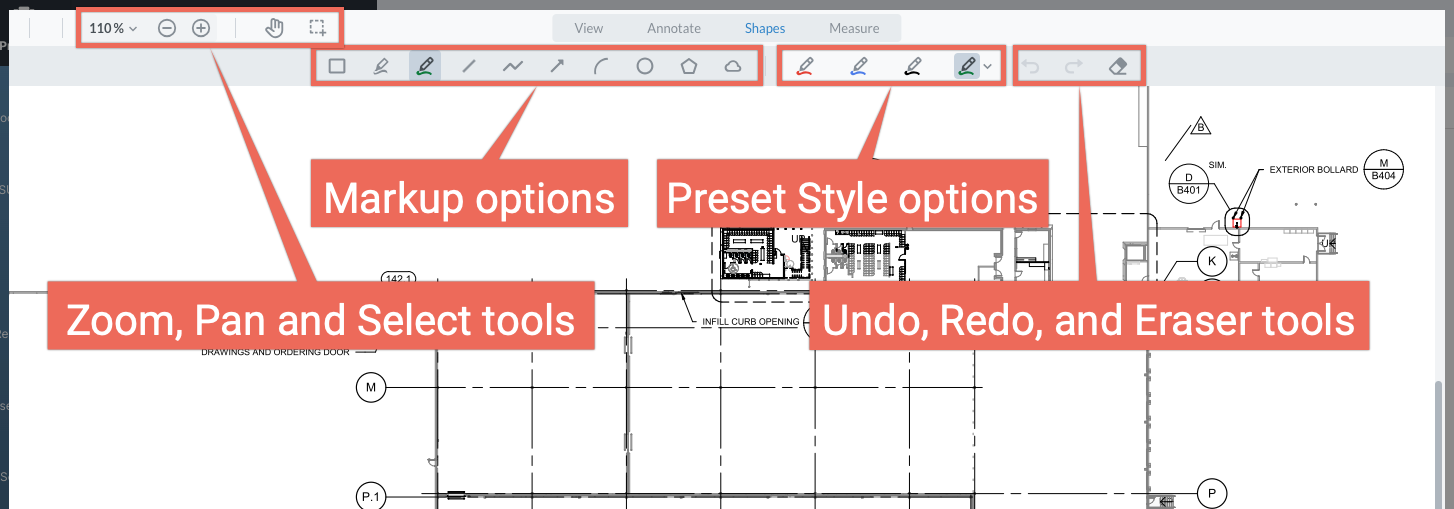

| The anatomy of the markup toolbar |
| Click Here for complete step-by-step guidance on the topic. |
Create a Snapshot from a Sheet and Link It to an RFI
Snapshots are cropped and flattened images of a section of a sheet. To create a snapshot of a sheet, start from the Sheets View. Once the snapshot is created, the system auto-generates its name based on the originating sheet name and it is saved under Snapshots on the project menu under Drawings.
From the Sheets Log:
- Select a sheet to view it, then select Snapshot
- Use the buttons on the toolbar to zoom ⊕ ⊖ and pan
on the sheet until the desired area is captured in the preview
- During this step, you can choose whether to save the new snapshot to Snapshots or attach the new snapshot to an RFI
- Select Done when finished

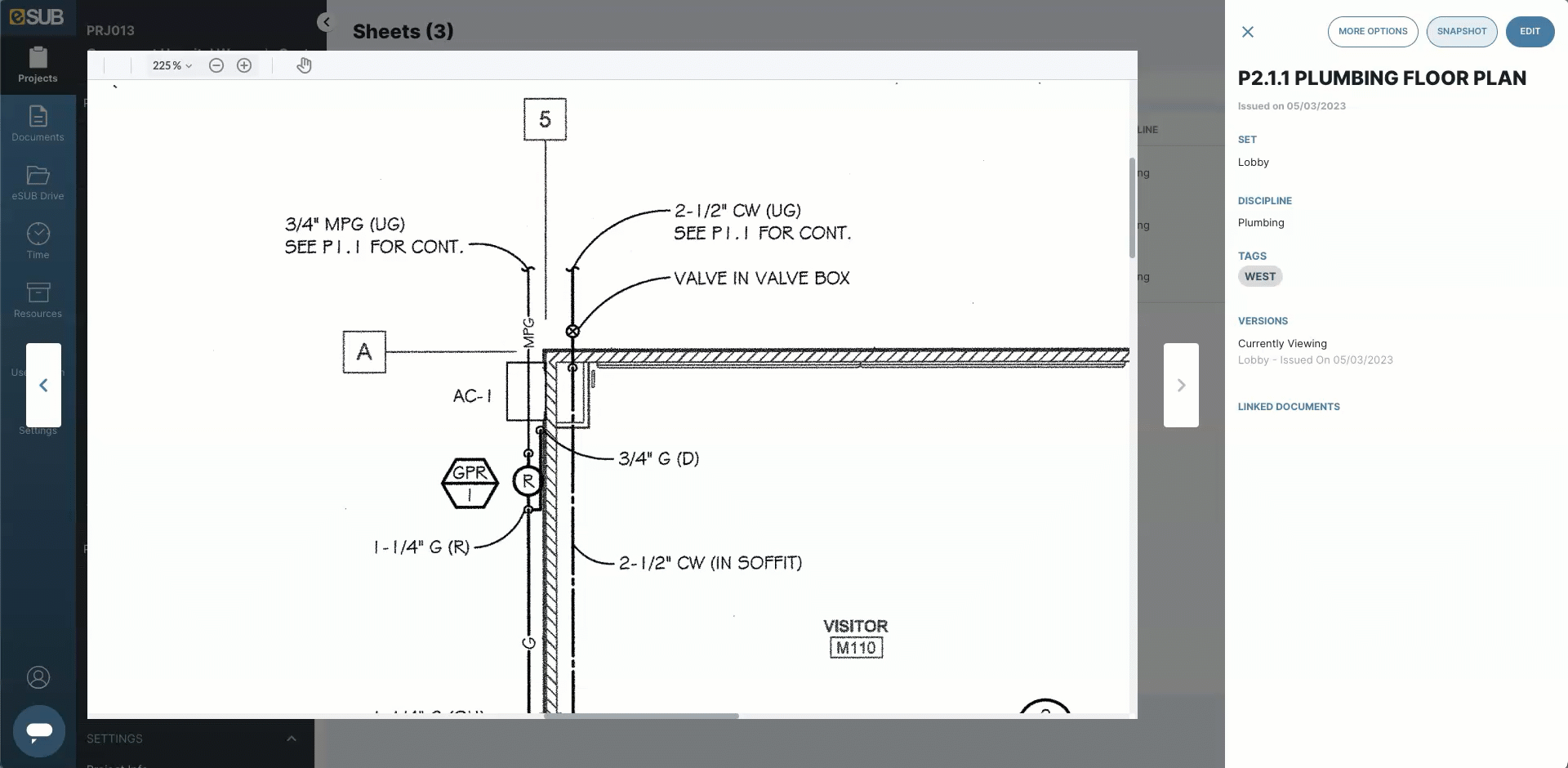

| How to create a new RFI from a Snapshot |
| Click Here for complete step-by-step guidance on the topic. |
